• Product model:

  Galvanized Steel Sheets/Coils

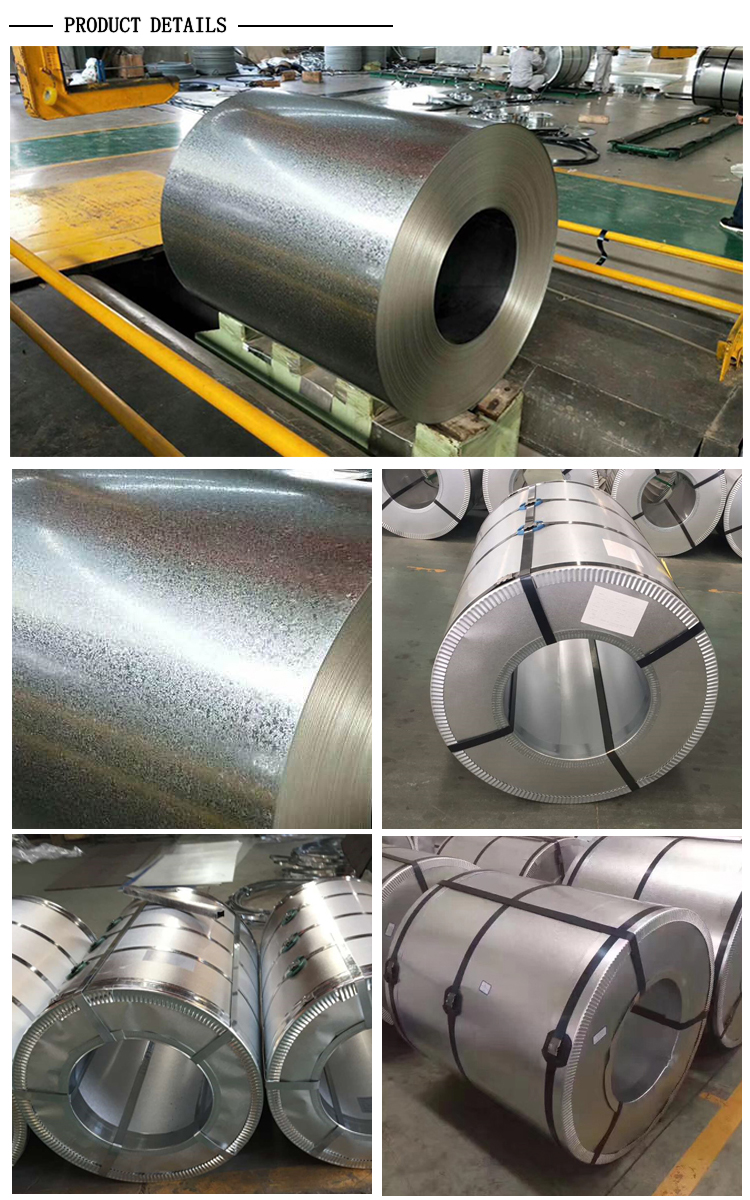

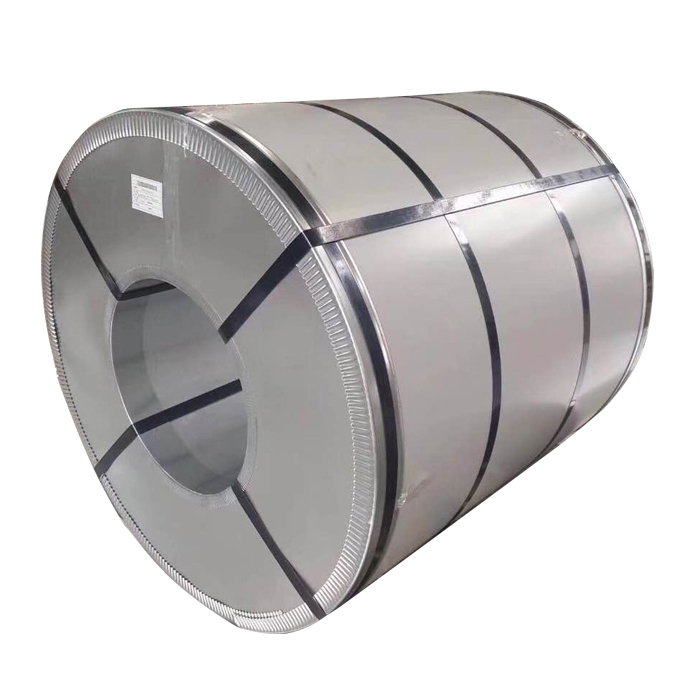

  Galvanized Steel Coils are produced through a process of metal coating which involves passing cold rolled coils through a kettle containing molten zinc . This process ensures adhesion of Zinc to the surface of the steel sheet . The Zinc Layer provides excellent corrosion resistance and prolong service life.

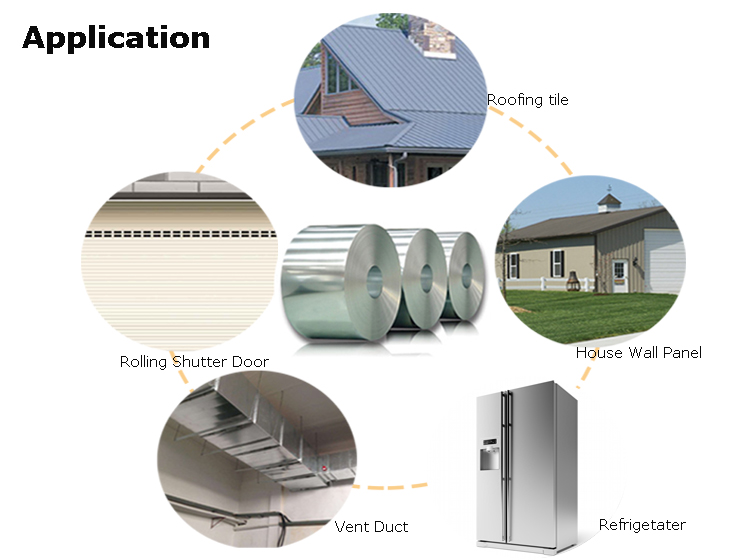

  Hot dipped galvanized products are widely used in household appliances ,transport , container manufacturing , roofing , base material for pre-painting ,ducting and other construction related applications.



  Standards	GB / JIS / ASTM
  Size range	Thickness 0.14mm-0.6mm , width 750 -1000mm
  Zinc coating	50 -140g / m2
  Coil ID	508mm
  Surface	Chromated / Un-oiled / oiled / Dry

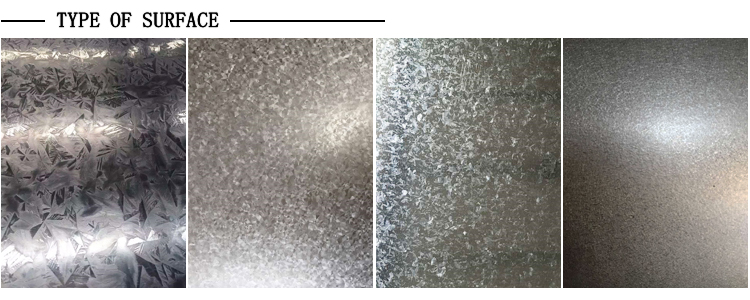

  Spangle	Regular / Minimized / Big Spangle
  Coil weight	2-12mt
  Material	SGCC,DX51D,SGCH



  GALVALUME COILS/SHEETS/CORRUGATED SHEETS

  Galvalume is a product which is very similar to Galvanized steel but with better corrosion resistance(up to three times the life of galvanized steel).The supperior properties of Galvalume arise from the unique composition(43.5% Zn,1.5% Si,55% AL)of the metallic coating.

  Applications include roofing base material for pre-painting.



  Technical Specifications



  Standards	JIS,ASTM,GB etc
  Size range	Thickness 0.15-0.6mm,width750-1250mm
  Temper	Full hard,half hard,soft
  Coating	AZ30-AZ160
  Coil weight	2-10mt
  Coil ID	508mm
  Surface	Chromated/oiled/dry/AFP/un-oiled
  Material	DX51D+AZ,SGLCC,SGLCH
